Walking robot
ElecFreaks Wonder Building Kit case 15: a two-legged walker on one 2 kg motor and the Wukong board.
The 3D model comes with the BrickLink Studio file.
Building steps

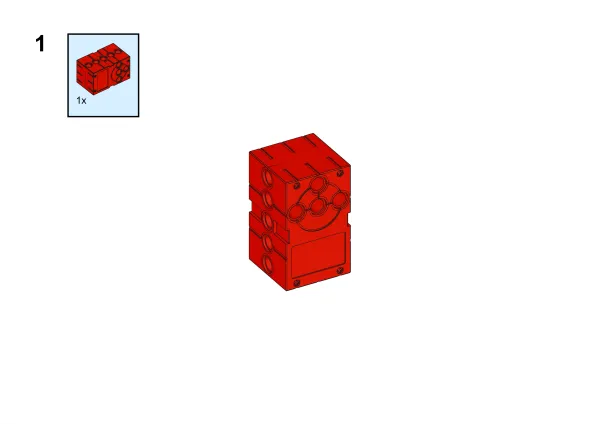

1.

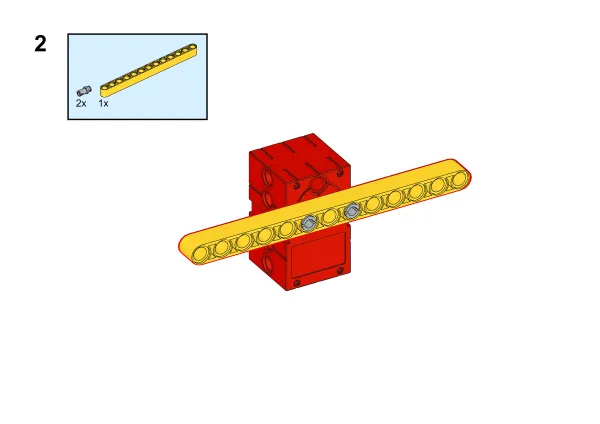

2.

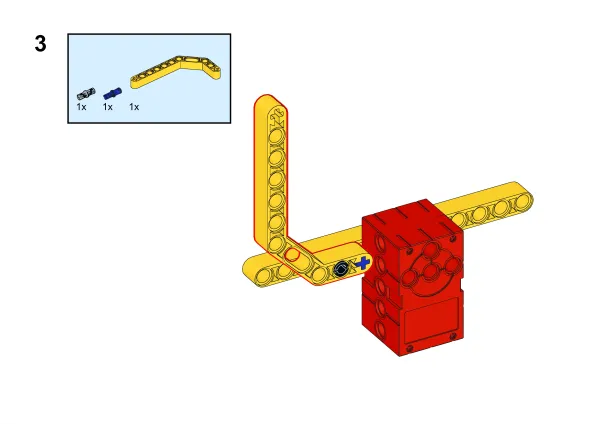

3.

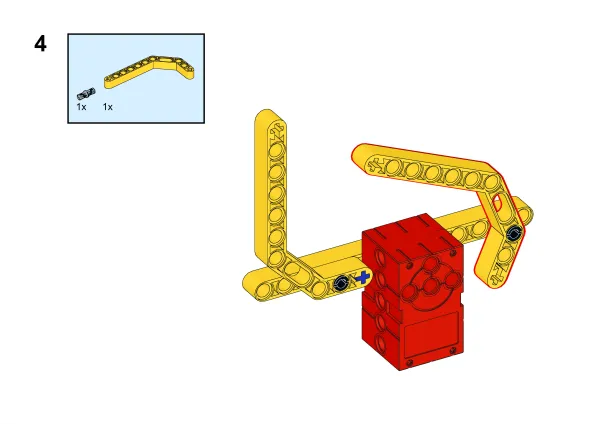

4.

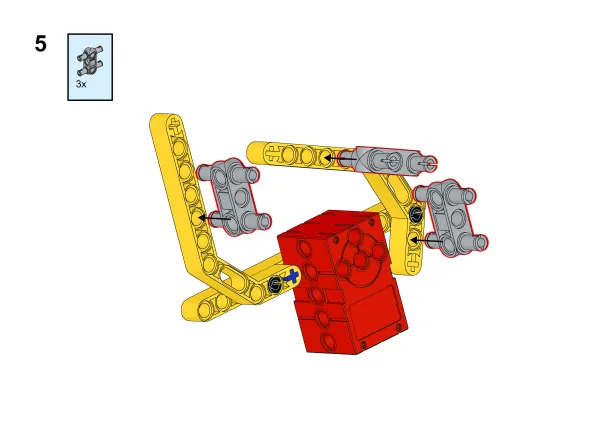

5.

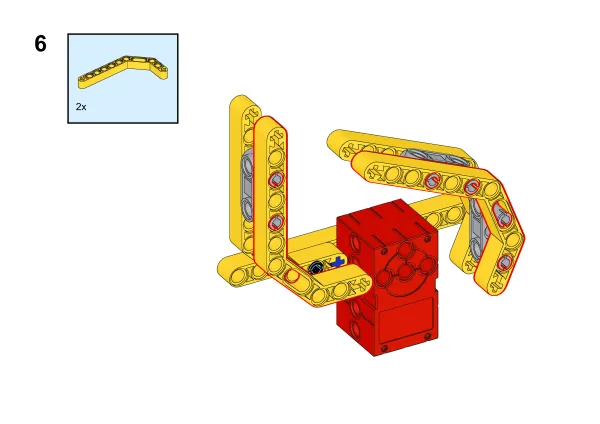

6.

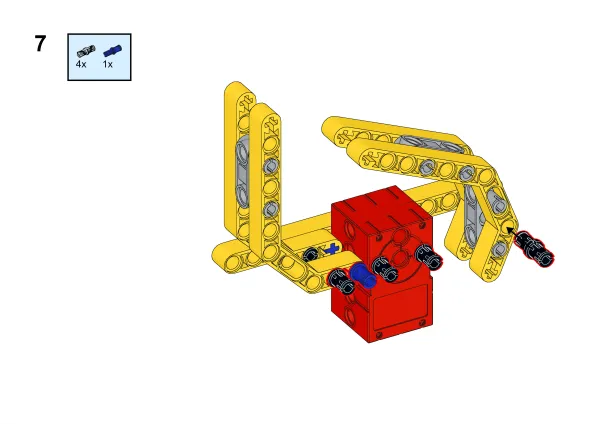

7.

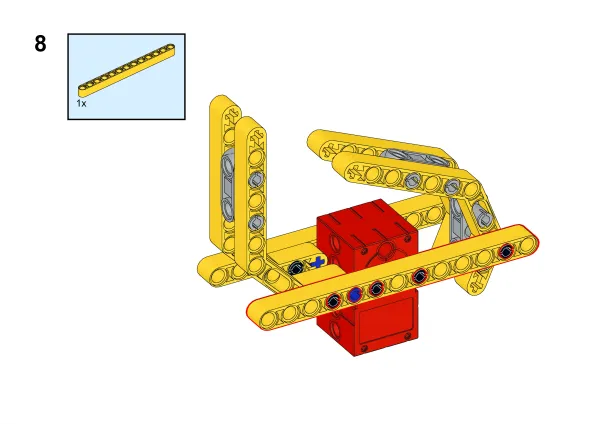

8.

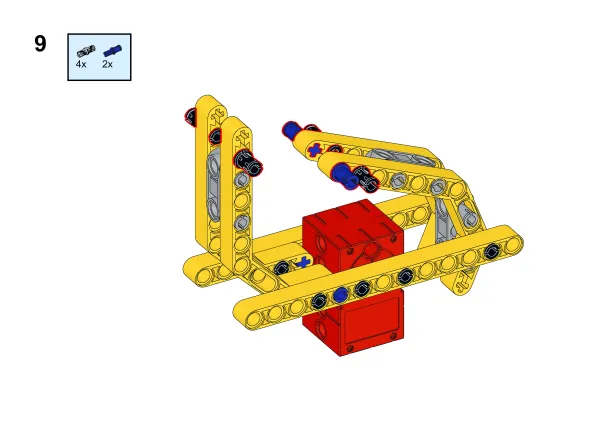

9.

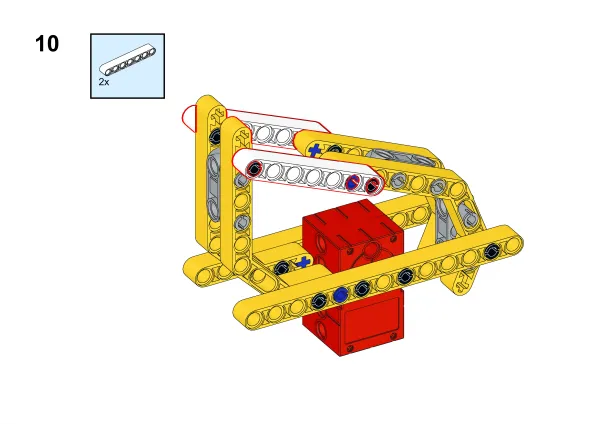

10.

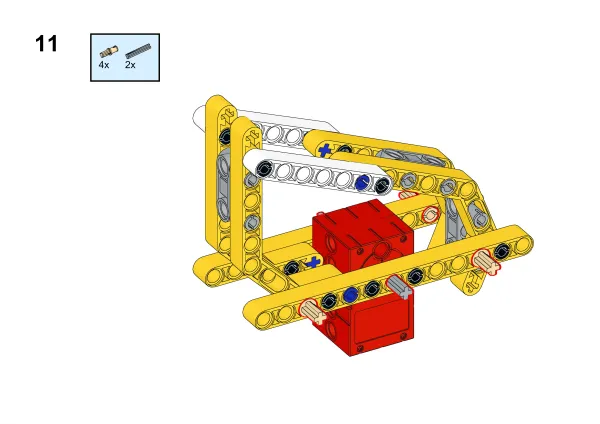

11.

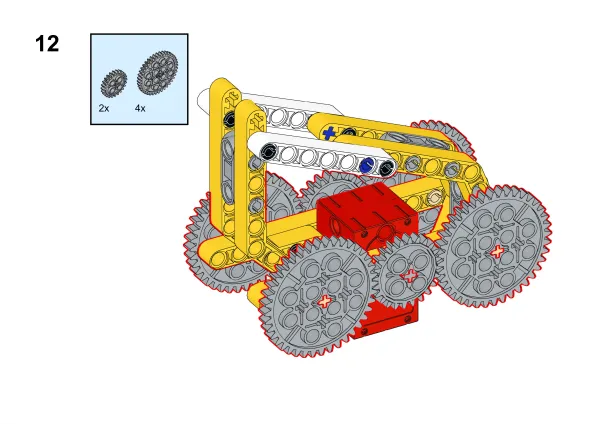

12.

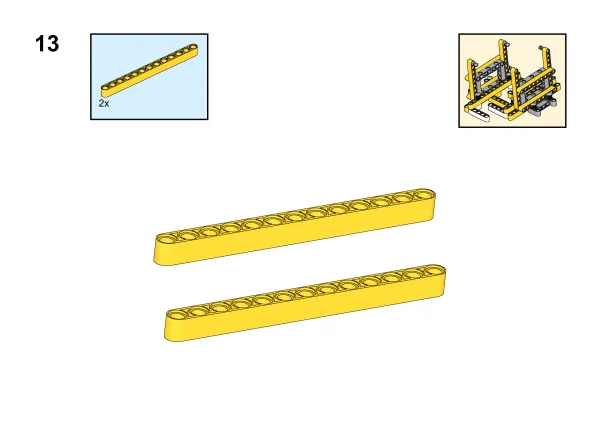

13.

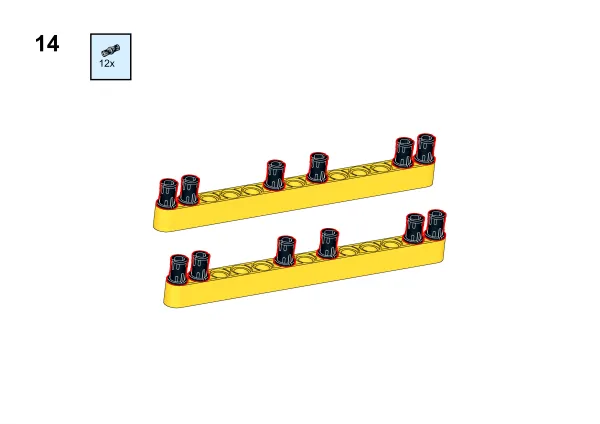

14.

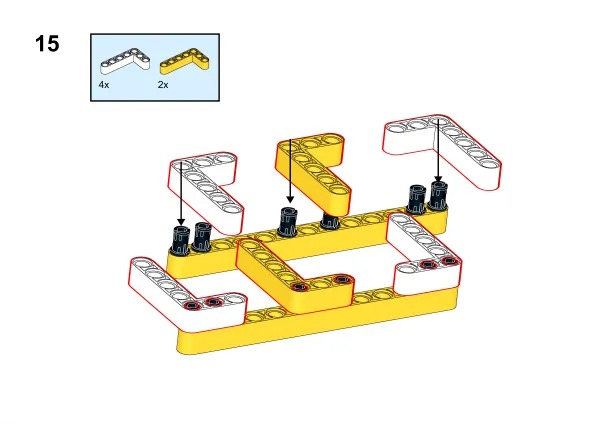

15.

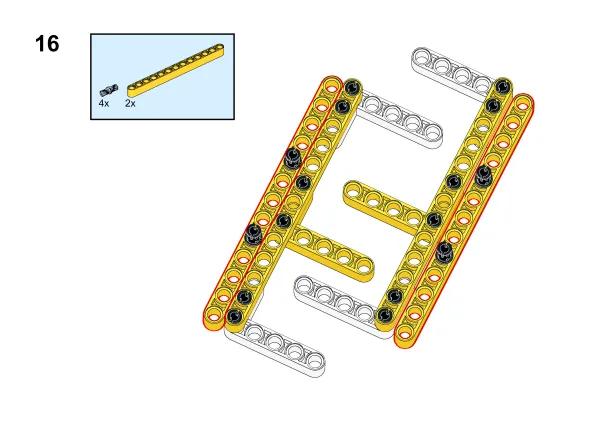

16.

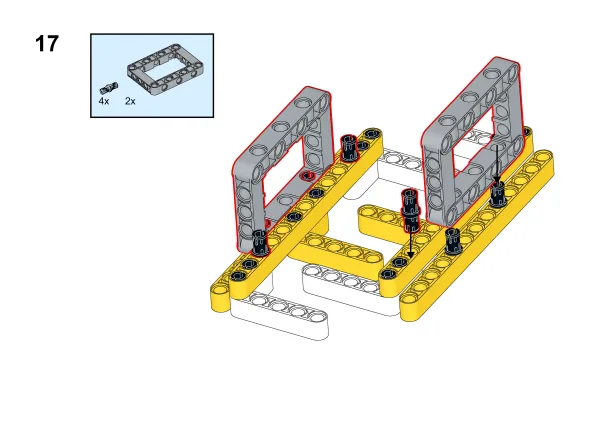

17.

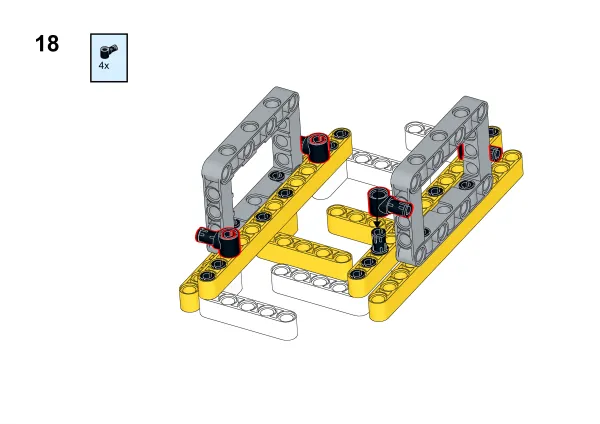

18.

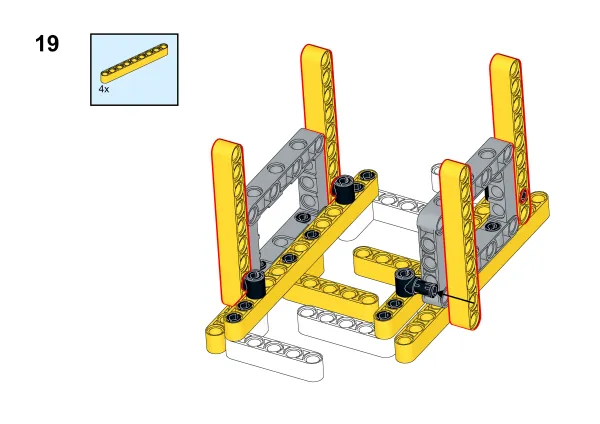

19.

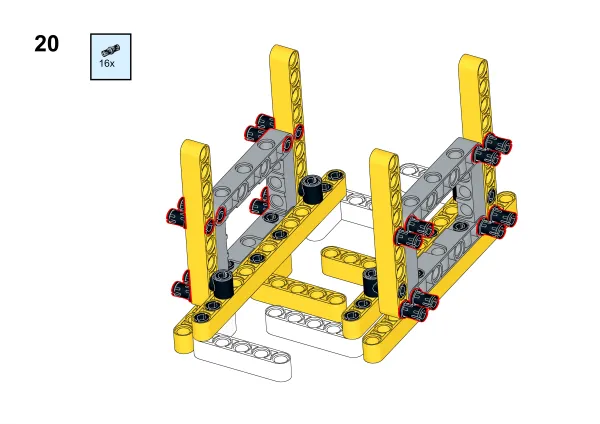

20.

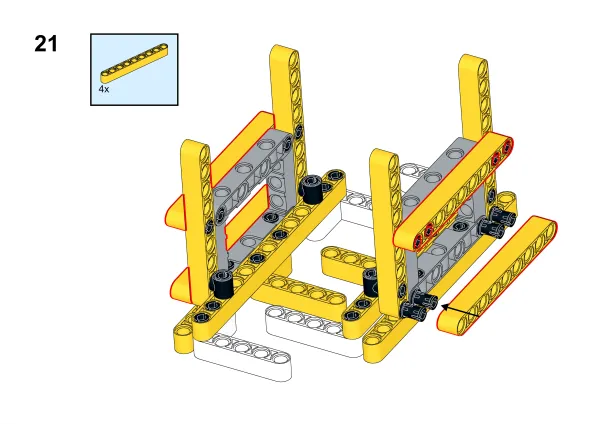

21.

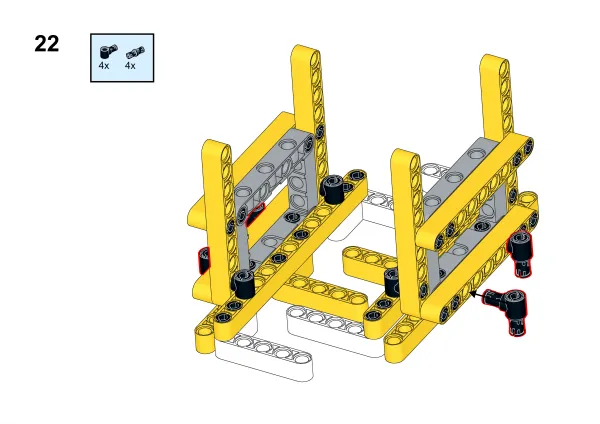

22.

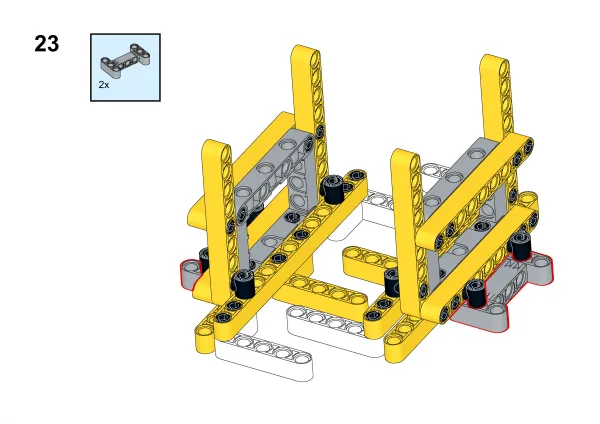

23.

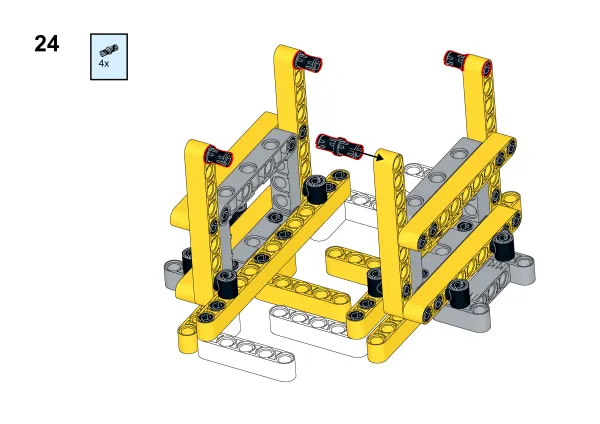

24.

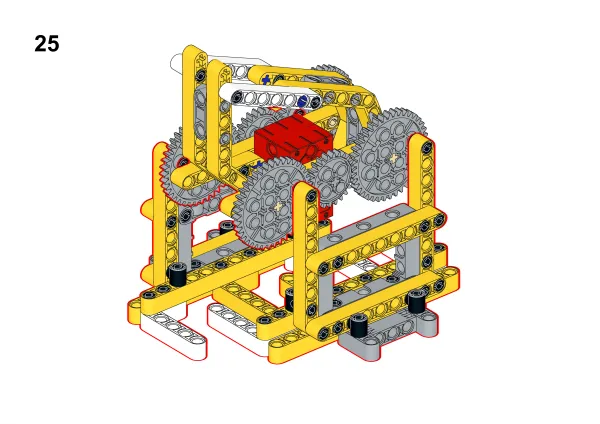

25.

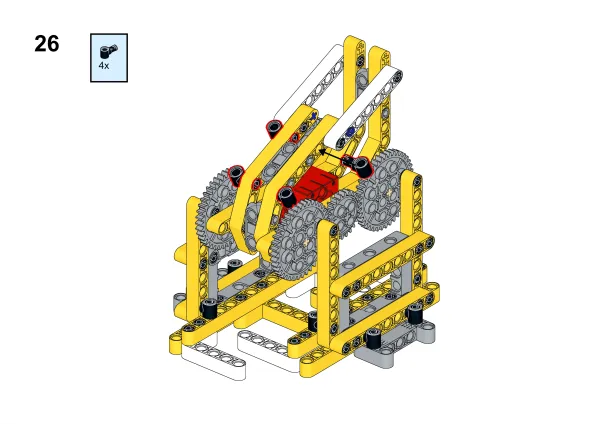

26.

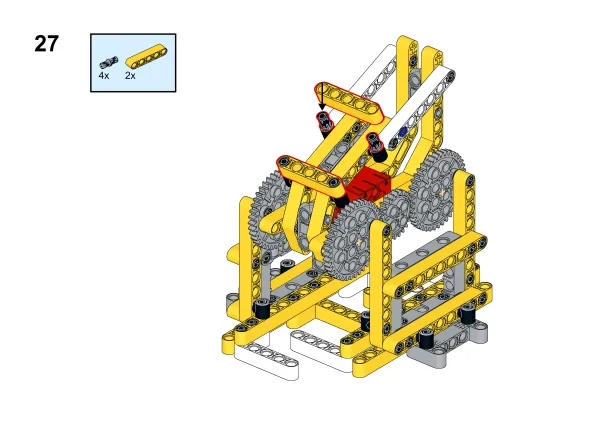

27.

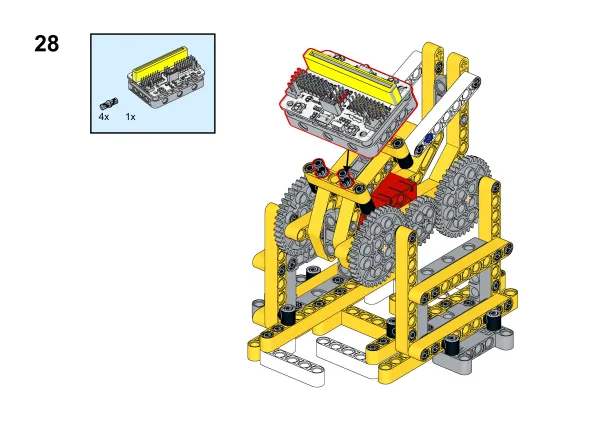

28.

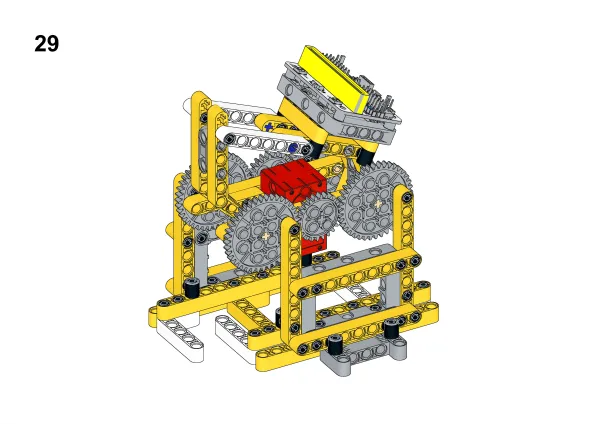

29.
Parts
| Part | Colour | Where to get it | Qty |
|---|---|---|---|
| 14720 | Light Bluish Gray | BrickLink 14720 | 2 |
| 15100 | Black | BrickLink 15100 | 12 |
| 2780 | Black | BrickLink 2780 | 63 |
| 32002 | Light Bluish Gray | BrickLink 32002 | 2 |
| 32009 | Yellow | BrickLink 32009 | 4 |
| 32316 | Yellow | BrickLink 32316 | 2 |
| 32524 | White | BrickLink 32524 | 2 |
| 32526 | White | BrickLink 32526 | 4 |
| 32526 | Yellow | BrickLink 32526 | 2 |
| 3648 | Light Bluish Gray | BrickLink 3648 | 2 |
| 3649 | Light Bluish Gray | BrickLink 3649 | 4 |
| 3749 | Tan | BrickLink 3749 | 4 |
| 40490 | Yellow | BrickLink 40490 | 8 |
| 41239 | Yellow | BrickLink 41239 | 6 |
| 43093 | Blue | BrickLink 43093 | 4 |
| 4519 | Light Bluish Gray | BrickLink 4519 | 2 |
| 48989 | Light Bluish Gray | BrickLink 48989 | 3 |
| 64179 | Light Bluish Gray | BrickLink 64179 | 2 |
| ElecFreaks Geekservo 2 kg motor (red) electronics | ElecFreaks | 1 | |
| ElecFreaks Wukong board on its 7 x 5 LEGO base electronics | ElecFreaks | 1 |
